This tab shows CIs related to this Article, and offers the possibility to add or remove associations. It is possible to associate existing CI or to create and associate new CI.
When you want to associate existing CI click on Attach CI button, in dropdown choose Existing and following form will appear:

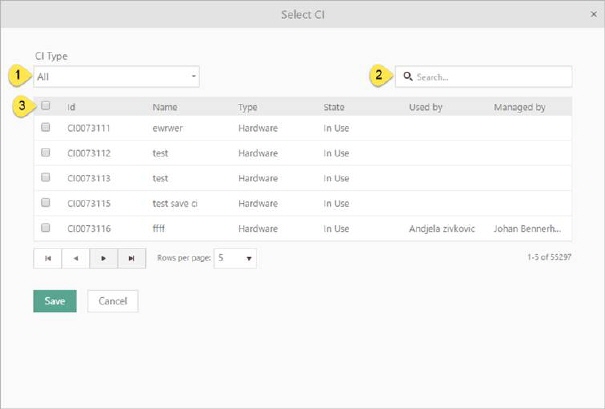

Attach existing CI
If you want to configure the table view, showed on picture above, you can do within the system view, for more information read: System entity views.|topic=System entity views;document=Documents\Eng_Entities.docx
CIs can be searched by name (2) and/or be filtered by CI Type (1). After choosing CI Type table is filtered due to selected type (and it´s subtype).
Selecting checkboxes (3) choose all Cis you want to associate. Click Save button, and preferred Cis will appear in list.
If you want to create and associate new CI, click o on Attach CI button, in dropdown choose New. First step is to select appropriate CI Type. After selecting CI Type, you will get a list of CIs properties based on selected type, which need to be edited. When you finished adding new CI, CI will appear in the list.
To remove preferred CI from list, choose Remove button rightmost on row. You can remove more CIs at the same time by select checkboxes and click the button Remove, just above the list, to remove all selected CIs.
Features like search, refresh, info, sorting, ordering, paging and export are explained in General User Interface.
