External Login Methods

External Login Methods is a function that uses your external providers (Office 365, Active Directory, etc.) credentials to login in NSP.

You can configure NSP to provide Single Sign-On for your users so they do not have to enter separate login credentials for NSP. The authentication of the user is done by an extern identity provider you configure in NSP and the unique user attributes are sent back to NSP. NSP platform in this version has support for these identity providers: OpenID Connect, WS-Federation, SAMLv2, BankID, GrandID and IDPorten.

External Login Methods

If you want to use external identification via SSO your NSP installation must be published on https. You need to provide an URL like: https://auth.nspnilex.com.

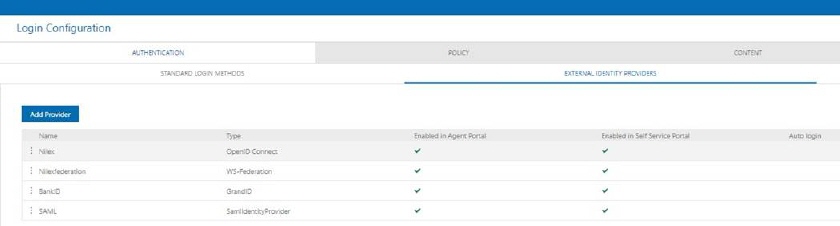

This page contains a list of all external login method existing in database. Page also offer possibility for adding new external login method, edit or delete existing  and activate/deactivate configuration.

The external login method allows Agents and End Users to log in in NSP using login credentials from an external service provider. Login methods can be enabled/disabled for Agent Portal and Self Service Portal separately.

External Login Methods

•   Name - This column contains Name of the external login method.

•   Type - This column contains Type of the external identity provider, OidcIDentityProvider, WsFederationIdentyProvider, SamlIdentityProvider, BankID,  GrandID or IDPorten.

•   Enabled in Agent Portal, Enabled in Self Service Portal - These columns contains  if external login method is enabled in respective portal. Login methods can be enabled/disabled on Agent portal and Self Service portal separately. More than one external login method can be activate at the same time. Each enabled external login method is displayed on login form.

•   Auto login - This column contains  if external login method is selected for auto login. Auto login can be activated for one method only at the same time.

This list also contains a dropdown action for each login method:

•   Edit - This option is used to edit external login method settings.

•   View - This option is used to view external login method settings.

•   Enable/Disable in Agent Portal/Self Service Portal - These options are used to enable/disable login method in respective portal.

•   Enable/Disable auto login - Only available for enabled options. If you enable a login method for auto login and there is already other method auto login enabled, auto login will be turned off for this other method. Auto login can be activated for only one method at the same time.

•   Delete – This option is used to delete external login method.

Also you can change position of external identity providers using drag and drop principle.

Add External login method

Just above the list is button Add External login method and by clicking that you can create new external login method.

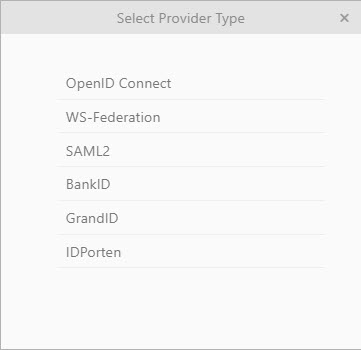

First step is to select appropriate login method (provider type) from the list. Default types are OpenID Connect, WS-Federation, SAML2, BankID and GrandID.

After selecting login method, you will get a list of default properties which need to be edited based on selected login method.

OpenID Connect

•   Name – insert login method name

•   Image - choose image which will be shown on login page

•   Authority - this information depends on the external login method settings

•   Client ID - this information depends on the external login method settings

•   Client Secret - this information depends on the external login method settings

•   Parameters – you can set sending predefined parameters to the initial request according to some openID external authority. The parameter is formed by entering the name and value in the format that suits your needs, e.g. Name: Doxproject, value: demo.

•   Black List Name Ids - If you want to prevent a user from logging into the system with a certain nameid value, enter the nameid value in this field

WS-Federation

•   Name – insert login method name

•   Image - choose image which will be shown on login page

•   Metadata Address - insert metadata address, this address depends on the external login method and add following path to the address /federationmetadata/2007-06/federationmetadata.xml

•   Wtream – this information depends on the external login method settings

•   Black List Name Ids - If you want to prevent a user from logging into the system with a certain nameid value, enter the nameid value in this field

SAML2

•   Name – insert login method name

•   Image - choose image which will be shown on login page

•   Metadata Address - insert metadata address, this address depends on the external login method and add following path to the address /federationmetadata/2007-06/federationmetadata.xml

•   Entity id – this information depends on the external login method settings

•   Service Provider Entity ID - this information depends on the external login method  settings

•   Black List Name Ids - If you want to prevent a user from logging into the system with a certain nameid value, enter the nameid value in this field

BankID

•   Name – insert login method name

•   Image - choose image which will be shown on login page

•   Target – select whether the BankID will be started from the same device, other device or any device

•   Client Certificate – upload BankID Client Certificate

•   CA Certificate – upload your CA Certificate

•   Black List Name Ids - If you want to prevent a user from logging into the system with a certain nameid value, enter the nameid value in this field

GrandID

•   Name – insert login method name

•   Image - choose image which will be shown on login page

•   ApiKey – insert your apikey from svensk e-identitet

•   BankID Service Key – insert your BankID service key from svensk e-identitet

•   Target – select whether the BankID will be started from the same device, other device or any device

•   Black List Name Ids - If you want to prevent a user from logging into the system with a certain nameid value, enter the nameid value in this field

IDPorten

•   Name – insert login method name

•   Image - choose image which will be shown on login page

•   Authority – this information contains authority URL for IDPorten (example https://oidc-ver2.difi.no/idporten-oidc-provider/)

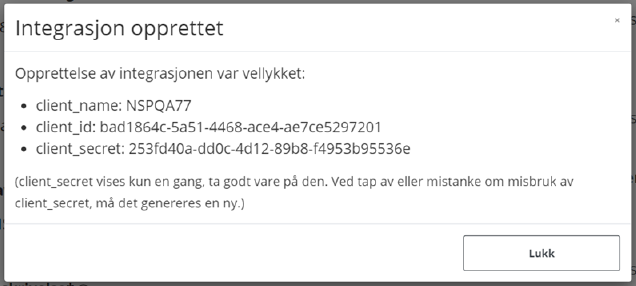

•   Client – this information contains Client Integration Identifier from IDPorten

•   Client Secret– this information contains Client Secret from IDPorten

•   Black List Name Ids - If you want to prevent a user from logging into the system with a certain nameid value, enter the nameid value in this field

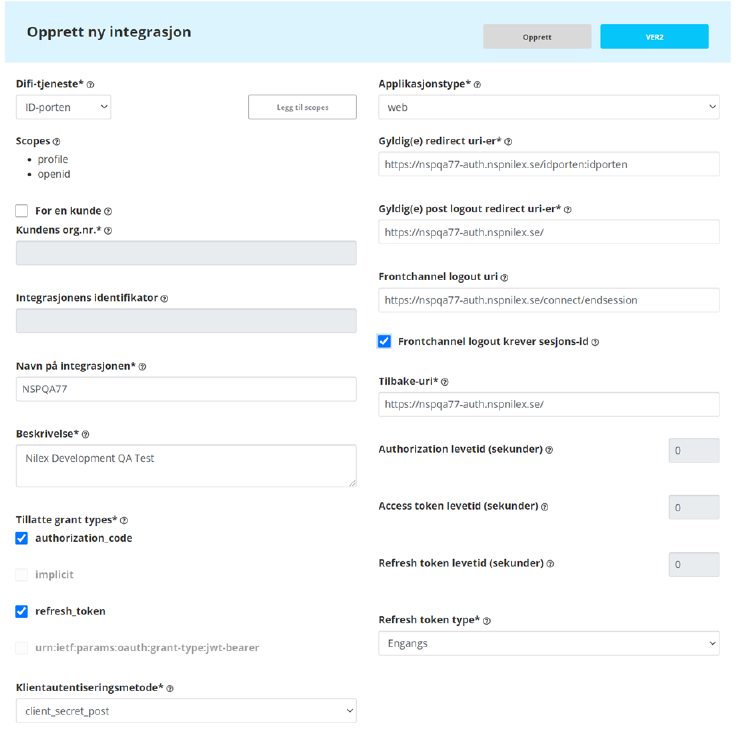

Adjust Settings in IDPorten portal:

Application type:web

Valid redirect URI: NSP AuthServer URL/providerID

(example: https://nsp-auth.nspnilex.se/idporten:nspidporten)

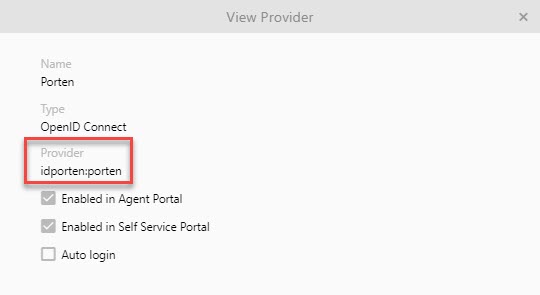

You can find the NSP ProviderID by clicking the View button in the external login methods list

Valid logout redirect URI: NSP AuthServer URL

(example: https://nsp-auth.nspnilex.se/)

Frontchannel log out URI: NSP AuthServel URL/connect/endsession

(Example:  https://nsp-auth.nspnilex.se/connect/endsession)

Frontchannel log out requires session ID: true

Back-uri: NSP AuthServer URL

(example: https://nsp-auth.nspnilex.se/)
