Group Mappings Example

Active Directory includes a group “NSP_Enduser1” we will get users from. This group consists of a number of users:



AD Group NSP_Enduser1

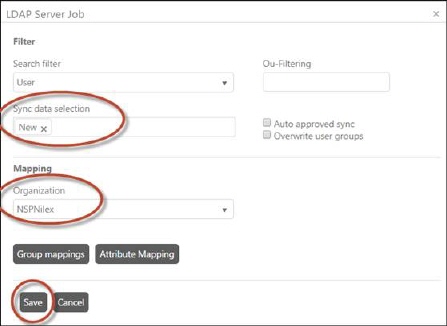

In LDAP Server Job form, Select New in Sync data selection to import new users and Select NSP Organization the new users will be members of, and then Save.

LDAP Server Job selections

Now the new LDAP Server is displayed in the list at the bottom of the Sync Settings form. Click Edit button  for the new server.

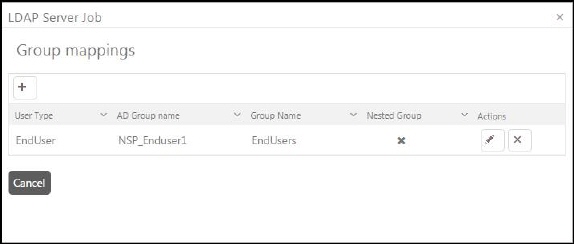

Here we create a mapping for AD Group “NSP_Enduser1”, select User Type “EndUser” and NSP Group “EndUsers”. Close the form.

LDAP Group Mapping

In Sync Settings form we now can select Sample Data Set button  to get a list of users that will be imported in this mapping
