NSP Logs integration with Windows Event Log

Adding this setting, allows users to receive logs in their Windows Event Viever, when any of the following actions is performed:

  when someone successfully logs in

  when someone logs out

  when someone tries to log in unsuccessfully

  when someone's account is locked due to failed login attempts

  when a user is created

  when the user is deleted

  when someone changes their password

  when system logs are turned on or off

  when something changes in the settings

  when anything is loaded from the database

  when anything is entered into the database

  when anything is deleted from the database

  when setting and changing anything an access rule (entity, global, UI)

  when a permission scope membership is changed

Settings

1.    To use this service correctly,  you either need to:

A.    Run as windows service with administrative privileges, or

B.    Have a PowerShell command executed as administrator prior to using:

New-EventLog -LogName Nilex -Source NSP



2.    After executing this command, the target server needs to be restarted



3.    Commands to this logging service are sent using HTTP messages. To send messages to this service, NSP needs to know the endpoint address. The endpoint is configured using the environment variable:

NSP_ENV_EVENT_LOGGING_SERVICE


On a development system, the endpoint address would be:

http://localhost:5143

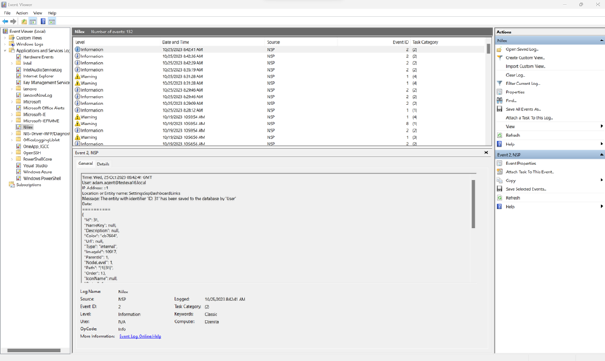

Once everything is set up, right click on the windows icon in the taskbar, and open Event Viewer. Your logs for set actions will be listed in the Applications and Services Logs/Nilex:



Event Viewer
