Navet Integration

Navet is Skatteverket’s (Swedish Tax Agency) population register service. This integration lets NSP users search for Swedish residents from person management forms. Two search modes exist:

•   Personpost: Look up a person by 12-digit personnummer (Swedish personal identity number). Returns name, address, birth date, civil status, and citizenship.

•   Namnsokning: Search by name, address, city, postal code, birth date, or gender. Returns up to 100 matching results.

Select a person from search results to auto-fill NSP form fields (name, address, birth date, SwedishPersonalNumber).

•   Before you begin, confirm you have:

•   Admin access to NSP Admin Portal.

•   A client certificate (.p12 file) for your organization. For test environments, this is Kommun A certificate from Expisoft.

•   PIN code or password for your certificate.

•   Your Organization Number (OrgNr) and Order ID (BestallningsId) from Skatteverket.

•   Access to your server running NSP (for certificate installation).

Certificate Setup

Navet requires a client certificate for authentication. Install it on your server running NSP. This section covers certificate setup.

Installing Certificate

Install your .p12 certificate into Windows Certificate Store on your server.

Option A: Using Windows GUI

1.  Double-click your .p12 file on your server.

2.  Select Local Machine and click Next.

3.  Enter PIN code or password and click Next.

4.  Check Mark this key as exportable.

5.  Select Place all certificates in following store and browse to Personal.

6.  Click Finish.

Option B: Using PowerShell (as Administrator)

$password = ConvertTo-SecureString -String "YOUR_PIN_CODE" -AsPlainText -Force

Import-PfxCertificate -FilePath "C:\path\to\certificate.p12"

    -CertStoreLocation Cert:\LocalMachine\My

    -Password $password -Exportable

Setting Private Key Permissions

This step matters most. It is also most common cause of issues.

When you import a certificate, Windows stores its private key as a file. By default, only your importing user account reads this file. NSP runs under a different account and needs Read access.

How to grant access:

8.  Open mmc.exe as Administrator on your server.

9.  File > Add/Remove Snap-in > Certificates > Computer Account > Local Computer > OK.

10. Go to Personal > Certificates.

11. Right-click your certificate (Kommun A) > All Tasks > Manage Private Keys.

12. Click Add.

13. Type Everyone (for test) or your specific application pool identity (for production).

14. Click Check Names > OK.

15. Select Read permission. Click OK.

Alternative: PowerShell script (as Administrator)

$cert = Get-ChildItem Cert:\LocalMachine\My |

    Where-Object { $_.Thumbprint -eq "YOUR_THUMBPRINT" }

$rsa = [System.Security.Cryptography.X509Certificates.

    RSACertificateExtensions]::GetRSAPrivateKey($cert)

$keyName = $rsa.Key.UniqueName

$file = Get-ChildItem "C:\ProgramData\Microsoft\Crypto"

    -Recurse -Filter $keyName -ErrorAction SilentlyContinue

$acl = Get-Acl $file.FullName

$rule = New-Object System.Security.AccessControl.

    FileSystemAccessRule("Everyone","Read","Allow")

$acl.AddAccessRule($rule)

Set-Acl $file.FullName $acl

For your settings, replace Everyone with your specific application pool identity (e.g., IIS AppPool\YourAppPoolName).

Getting Thumbprint

You need certificate thumbprint (40-character hex string) to configure NSP. Run this in PowerShell:

Get-ChildItem -Path Cert:\LocalMachine\My |
    Format-List Subject, Thumbprint

Find your certificate (e.g., CN=Kommun A) and copy its 40-character Thumbprint value.

Example: B120738618B5426316C905AC58F6DB61C5C4423C

Verifying Setup

Run this PowerShell command on your server to verify everything works:

$cert = Get-ChildItem Cert:\LocalMachine\My |
    Where-Object { $_.Thumbprint -eq "YOUR_THUMBPRINT" }
Invoke-WebRequest
    -Uri "https://www2.test.skatteverket.se/na/na_epersondata/V4/personpostXML"
    -Certificate $cert -UseBasicParsing

Expected result: StatusCode: 200

If you get an error, check:

Configuring Swedish Person Register

Configuration > Channels > Integration Settings > Swedish Person Register

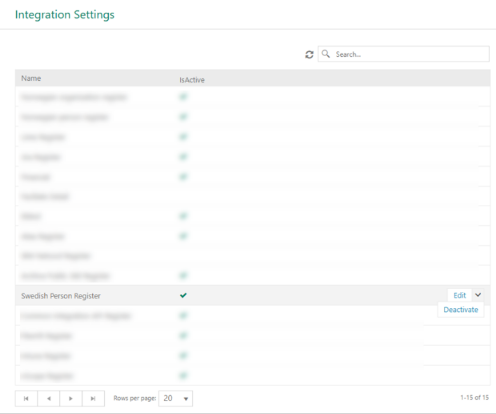

Integration Settings:  Swedish Person Register

Fill in following fields in settings dialog:

Certificate Thumbprint

•   Paste your 40-character thumbprint from

o Example: B120738618B5426316C905AC58F6DB61C5C4423C

•   Organization Number

o Your organization number (OrgNr) registered with Skatteverket. For test: 162021004748 (matches Kommun A certificate).

•   Order ID (BestallningsId)

o Order ID assigned by Skatteverket. For test: 00000236-FO01-0001.

•   Personpost Service

o Check Enable Personpost and enter endpoint URL.

•   Namnsokning Service (optional)

o Check Enable Namnsokning and enter endpoint URL.

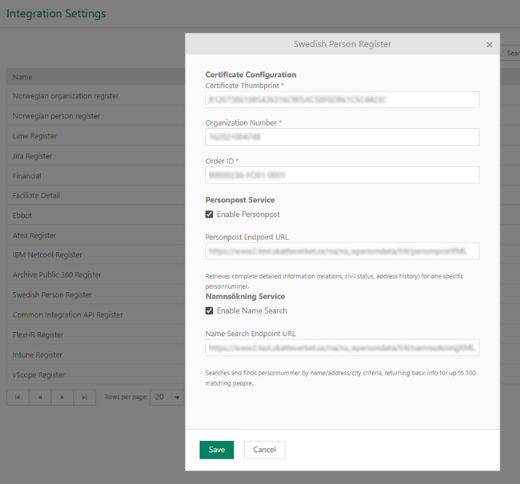

Swedish Person Register Configuration

 Register search

Once configured, Swedish person search panel appears in person management forms. It has two tabs depending on which services you enable.

Personpost (Search by ID)

7.  Open a person form in NSP.

8. Click Personpost tab in Swedish person search panel.

9.  Enter a 12-digit personnummer in format YYYYMMDDXXXX.

10. Search button becomes active when you enter a valid 12-digit number.

11. Click Search.

12. Person details appear in results grid.

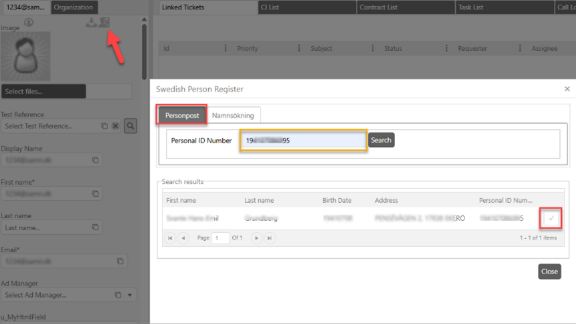

Navet: Search by ID

Results grid show:

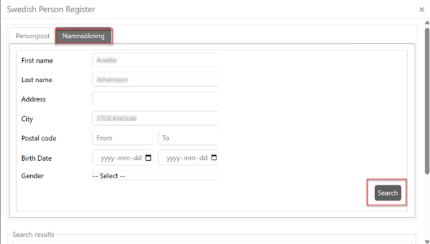

Namnsokning (Search by Name)

1. Click Namnsokning tab.

2.  Enter one or more search criteria:

3.  Search button becomes active when you enter at least one criterion.

4.  Click Search.

5. Up to 100 matching people appear in grid.

Navet: Search by ID

Copying Results to a Form

After searching, click Select on any row. Following form fields auto-populate:

•   First Name

•   Last Name

•   Full Name / Display Name

•   Swedish Personal Number (personnummer)

•   Birth Date

•   Address (with address lookup)

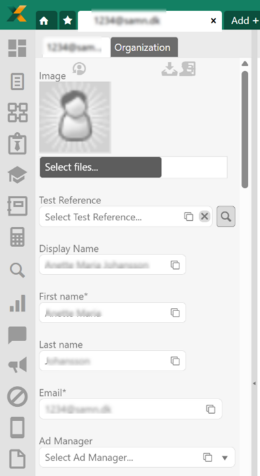

Copying Results to a Form

Known Issues and Solutions

1. Private Key Permissions (Most Common)

Symptom: Could not create SSL/TLS secure channel error, or ERR_BAD_SSL_CLIENT_AUTH_CERT in browser.

Cause: Certificate is installed and private key exists, but application account does not have permission to read private key file. This is a file-level Windows permission issue, not a certificate issue.

How we found this: Integration worked on a developer laptop but failed on a server. Certificate was installed, private key was present (HasPrivateKey: True), and root CA was installed. Connection still failed. PowerShell testing showed admin users connected fine but non-admin users failed. Root cause: private key file (stored under C:\ProgramData\Microsoft\Crypto\) only had permissions for SYSTEM and Administrators. Application account was not listed.

Solution: Follow Section 3.4 to grant Read permission on private key file.

Quick diagnostic command:

# Run as Administrator on the server:
$cert = Get-ChildItem Cert:\LocalMachine\My |
    Where-Object { $_.Thumbprint -eq "YOUR_THUMBPRINT" }
$rsa = [System.Security.Cryptography.X509Certificates.
    RSACertificateExtensions]::GetRSAPrivateKey($cert)
$keyName = $rsa.Key.UniqueName
$file = Get-ChildItem "C:\ProgramData\Microsoft\Crypto"
    -Recurse -Filter $keyName -ErrorAction SilentlyContinue
Get-Acl $file.FullName | Select -Expand Access |
    Format-Table IdentityReference, FileSystemRights

If application account (or Everyone) is not listed with Read access, fix permissions per Section 3.4.

2. Browser vs Application usage

Symptom: Browser shows ERR_BAD_SSL_CLIENT_AUTH_CERT, but application might still work.

Cause: Chrome and other browsers only use certificates from CurrentUser store for client authentication, not from LocalMachine. Since you installed certificate in LocalMachine\My (correct for your application), browsers do not find it.

Solution: Do not rely on browser testing. Use PowerShell verification command from Section 3.6 instead. If PowerShell returns StatusCode: 200, your application works.

Troubleshooting
